Automatic Sliding Gate
Elite Series. Security and convenience, automated.
Overview
Motorised sliding gates for homes, villas, apartments and commercial campuses: a safe, secure and comfortable entrance for people and vehicles, with photocell safety and optional access control.
The Elite Series automatic sliding gate brings the same engineering we apply to glass to your main entrance. A heavy-duty motor moves the gate smoothly along a floor track, so the full width of the opening is clear for cars and people without the swing space a hinged gate needs.
We design the gate leaf to match your elevation, from wood-finish horizontal slats to steel and aluminium profiles, and fit the motor, rack, safety photocells and controls as one system.
Controls and options
- Remote control as standard
- Optional push button, keypad, RFID card or access control
- Compatible with home automation systems
- Optional flash lamp for visual indication while the gate moves
- Battery backup and manual release for power cuts
Sliding, track-mounted
Gate type
Residential and commercial entrances
Suitable for
Infrared safety photocells, obstacle detection
Safety
Features
Safe and secure entrance
The gate stays locked in position when closed and opens only for authorised users.
Comfortable entrance
Open and close the gate from your car with a remote. No need to step out.
Suitable for people and vehicles
A full-width opening for cars, with safe passage for people.
Closing safety with photocell
Safety photocells stop and reverse the gate if anything is in its path.
Optional push button / access control
Add a push button, keypad, RFID card or access control system.
Compatible with home automation
Connect the gate to smart home and security systems.
Optional flash lamp
A flashing lamp gives a visual signal while the gate is moving.
Benefits
- No swing space needed
The gate slides along the wall, so the driveway stays usable.
- Matches your elevation
Wood-finish, steel or aluminium leaves designed for your facade.
- Peace of mind
Photocell safety, manual release and optional battery backup.
Technical specifications
| Gate type | Sliding, track-mounted |
|---|---|
| Suitable for | Residential and commercial entrances |
| Safety | Infrared safety photocells, obstacle detection |
| Control options | Remote, push button, keypad, RFID, access control |
| Power supply | 230 V AC |
| Options | Flash lamp, battery backup, home automation |
Values are typical. Final specifications depend on glass type, size and site conditions and are confirmed in your quotation.
Request the datasheetWhatsAppWhere it is used

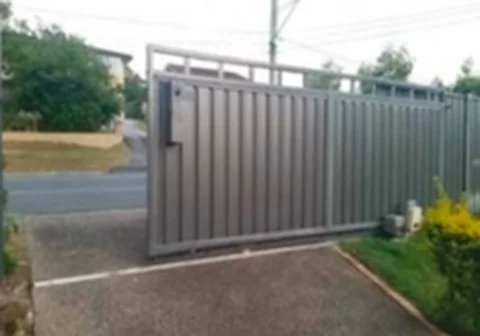

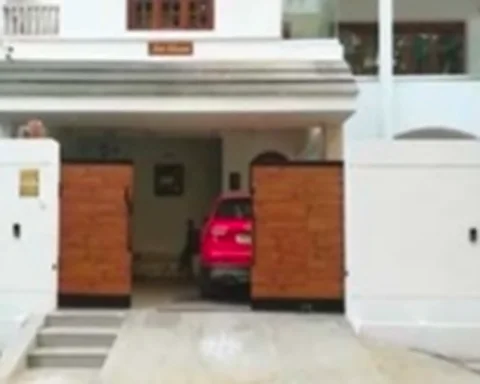

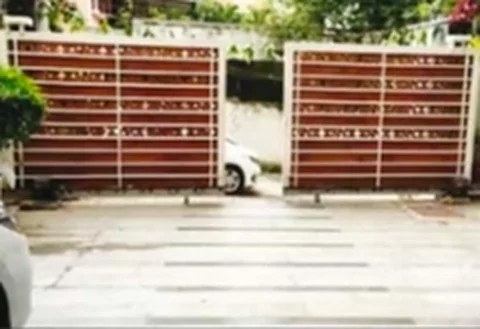

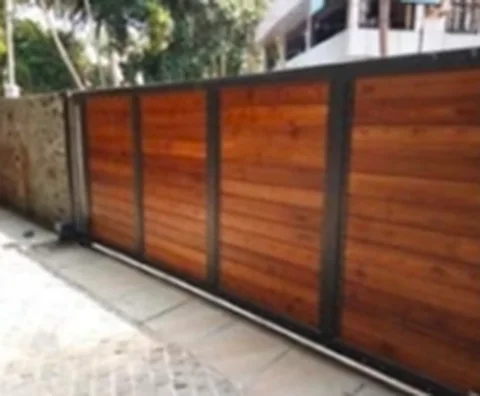

Gallery
Installation
- Site survey: we check the opening width, gate weight, ground level and power point.
- Foundation and track: the track and motor base are fixed on a level, reinforced foundation.
- Gate and operator: the gate leaf, rack and motor are installed and aligned.
- Safety setup: photocells, limit switches and force settings are calibrated.
- Handover: remotes are paired and we show you the manual release and daily operation.
Automatic Sliding Gate: questions
Yes. Gates can be fitted with battery backup, and every operator has a manual release so the gate can be moved by hand.
Often, yes. If the existing sliding gate is straight, strong and runs on a level track, we can add a motor, rack and safety photocells. We confirm this during the site survey.
Planning a project with Automatic Sliding Gate?
Share your drawings, room sizes or just an idea. We will recommend the right glass, film or automation and send a detailed quote.
